Panasonic

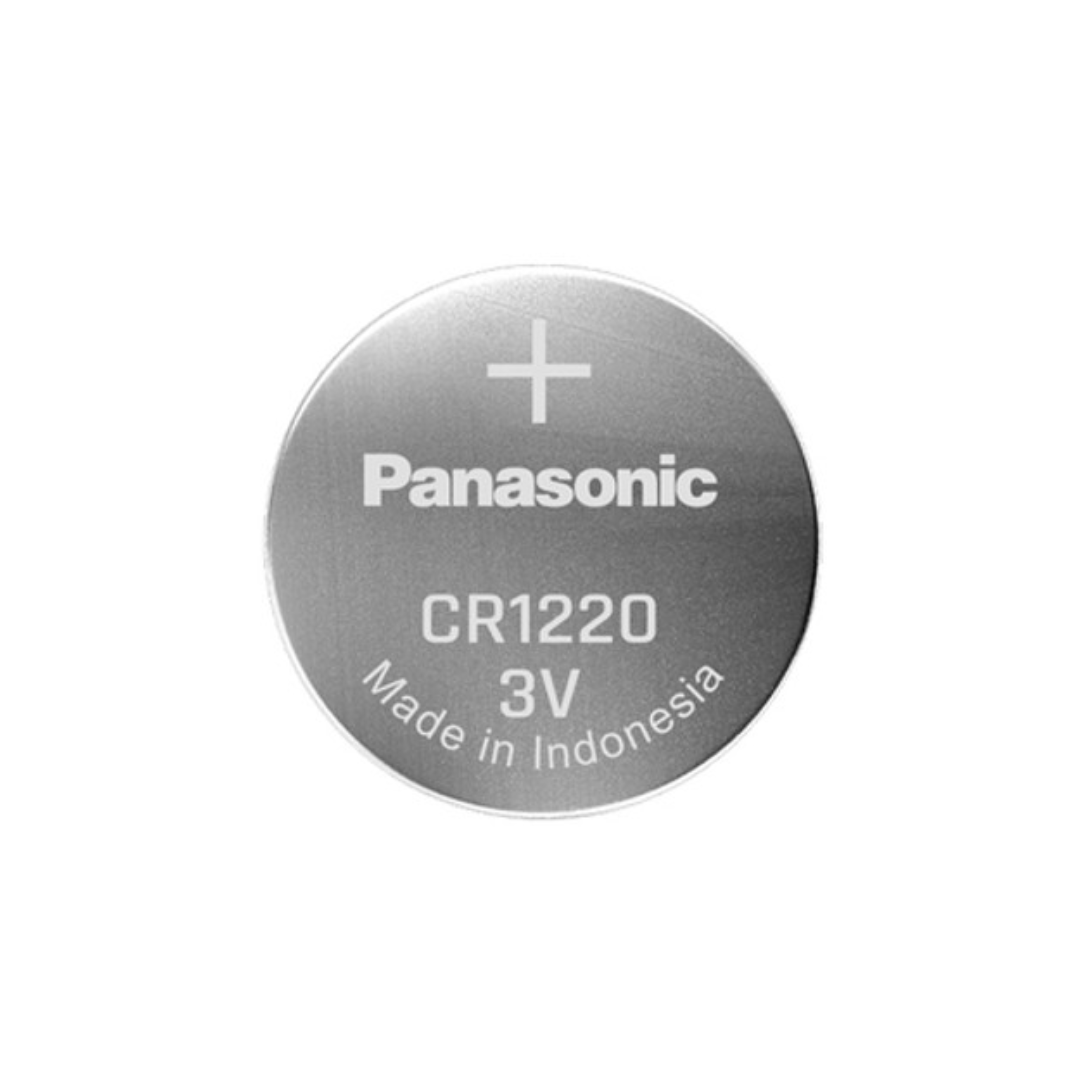

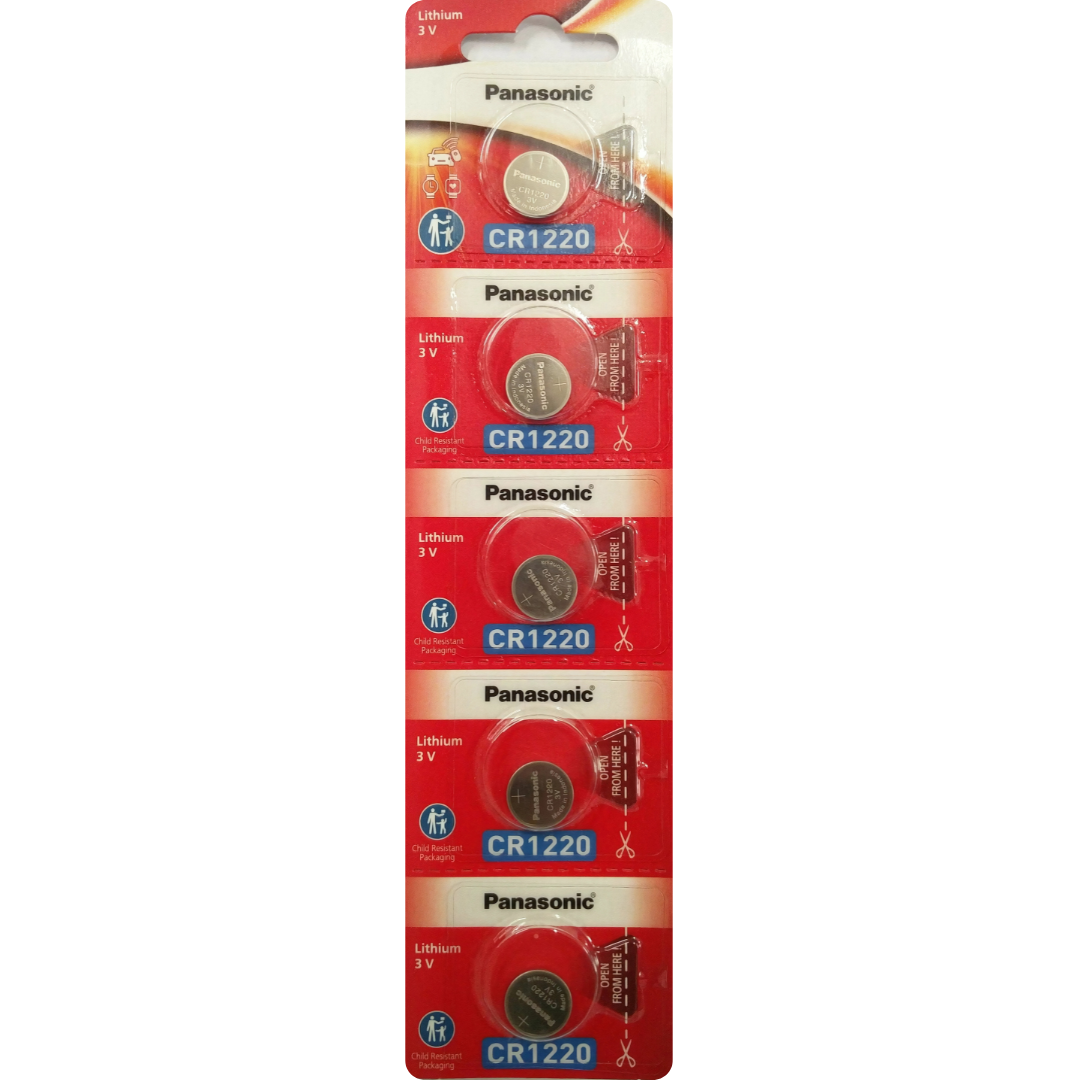

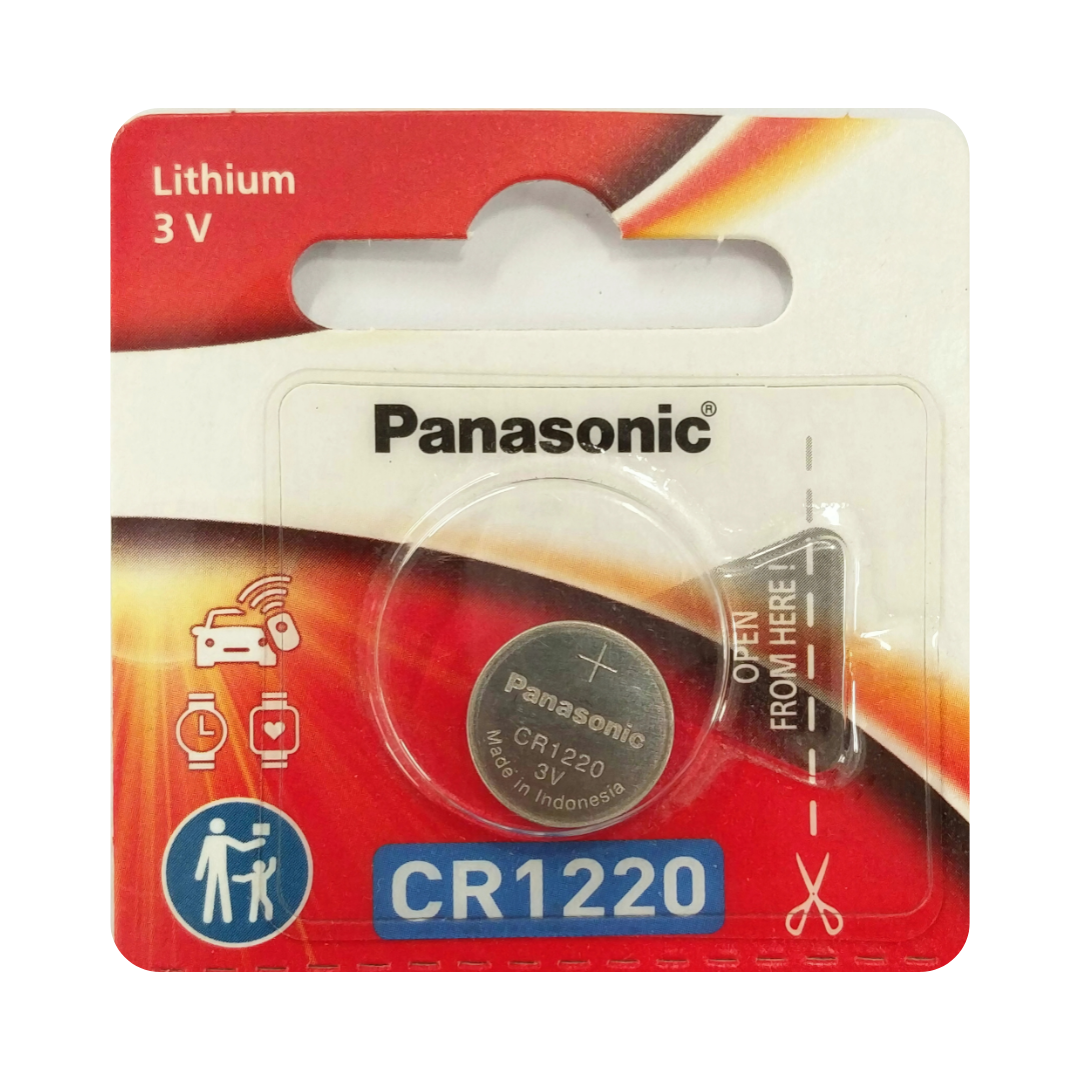

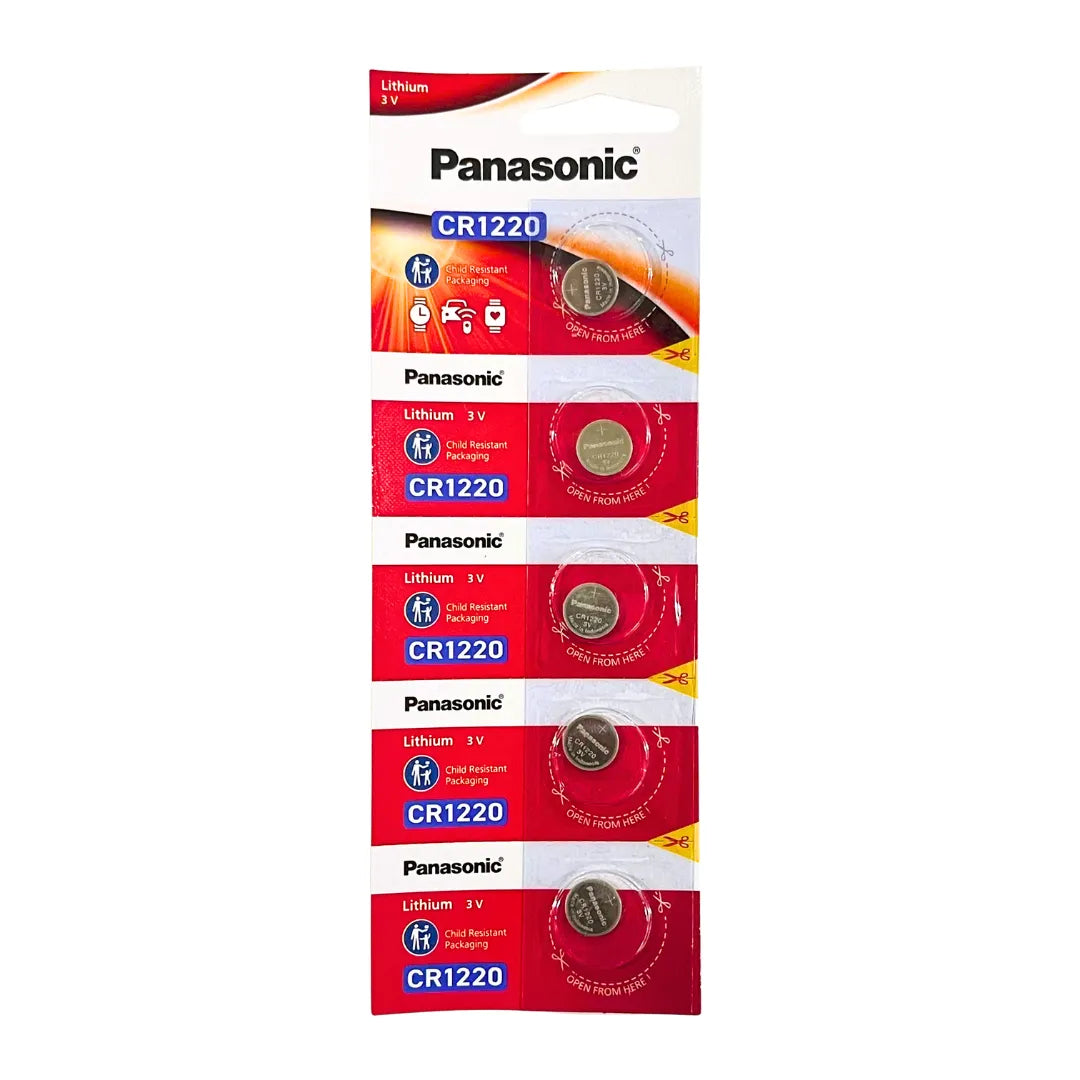

Panasonic CR1220 3V Lithium Coin Cell Battery

Panasonic CR1220 3V Lithium Coin Cell Battery

Regular price Rs. 59.00
Regular price Rs. 80.00 Sale price Rs. 59.00
Sale Sold out
18% GST included. Shipping calculated at checkout.
Pack

Technical Specifications

Brand Panasonic
Size 1220
Height (mm) 2.00
Diameter (mm) 12.00
Packaging Blister Pack
Voltage 3V
Typical Capacity (mAh) 35
Chemical System Lithium Manganese Dioxide
IEC Code CR1220
Product Code PAN-CR1220



Features

  • High and Stable voltage (3V)
  • A full line up for use in a wide variety of applications
  • No mercury added
  • Useful in a wide range of temperatures (-30°C to +60°C)
  • Very high weight-to-power ratio
  • Manganese dioxide material
  • High capacity Long Lasting life.
  • Low self-degradation rate and superior storability
  • 0.2mA continuous standard drain
  • High leak protection and hence no oxidation damage in devices, so it can be used in any expensive Gadget with superior safety.
  • Resistance to continuous discharge and hence Very low self-discharge;
  • Long shelf life for up to 10 years.

Applications

Lithium Coin CR1220 has certain achievements for devices where traditional batteries cannot be used. This battery can be used for memory back-up, digital watches, car keys, laser pens, fitness appliances and medical devices such as tensiometers and clinical thermometers.

About Manufacturer

Panasonic CR1220 3V Lithium Coin Battery is the most commonly used coin battery which provides long-lasting and reliable power for various devices. They are used to power small electronic devices such as a calculator, Digital Watches, Remote controls, Musical Gadgets like Guitar Tuner, Various medical Devices, fitness Gadgets, & toys etc.

The CR1220 is a 3V coin-type Lithium Battery that comes with 35 mAh capacity. It has flat top terminals. It is ideally suited for use in all kinds of products where the trend is to achieve increasing miniaturization.

Since the manganese dioxide that is chemically very stable is used for the plus terminal as an active material, if preservation conditions are proper, 90% of capacity remains even after ten years of storage. It employs organic electrolytes with minimum creeping so they are vastly superior in terms of leakage resistance under environmental changes.

Long shelf life

90% of the original capacity: that is what the Panasonic lithium coin CR1220 batteries still have after even 10 years. The combination of lithium and manganese dioxide results in a chemically very stable battery. Long-term discharge has been verified at all operating temperatures under low-load discharge conditions.

Ultra-compact power

The Panasonic lithium coin CR1220 battery has a high voltage of 3V. In short: lots of power in an ultra-compact design. You have enough with one lithium battery in comparison to 2, 3 or more traditional batteries. Choose the lithium coin CR1220 battery as a powerful source of energy for your small devices.

High reliability and safety

Repeated tests on the various safety and performance characteristics of this battery have been conducted by Panasonic. Also the effects of environmental factors such as temperature were tested. Panasonic has accumulated a wealth of corroborative data on the performance of our batteries that cannot be pinpointed by short-term accelerated tests. The result is that Panasonic batteries have won consent for their high reliability and safety under the UL safety standards in the United States and wide recognition over the world.

Applications

Lithium Coin CR1220 has certain achievements for devices where traditional batteries cannot be used. This battery can be used for memory back-up, digital watches, car keys, laser pens, fitness appliances and medical devices such as tensiometers and clinical thermometers.
